Under Cabinet Range Hood

Perfectly sized for under cabinet applications

Under Cabinet series range hood.

The Under Cabinet range hood series is designed to integrate seamlessly underneath kitchen cabinets. With three classic body shapes and over a dozen metal and finish options, you can customize your range hood to integrate seamlessly with cabinetry hardware and appliances.

Please scroll through this page to familiarize yourself with the design process, then click the link below to start designing your own Under Cabinet range hood.


Design Your Hood

Width: 30", 36", 42", or 48"

Height: 28" (for 8' ceilings; flue extensions available)

Blower: Internal or Remote/External options available

Air Flow: 290-1,200 CFM, depending on blower unit

Lighting: Yes (LED)



Shop drawings for all Under Cabinet range hoods (PDF)

RAL color swatches for powder coated hoods (PDF)

Haube range hood catalog (PDF)

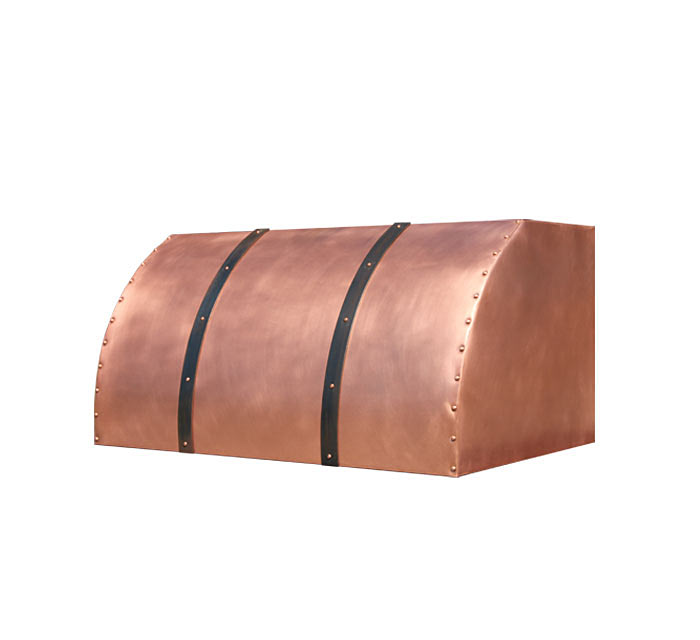

Pictured is our barrel body in copper with blackened steel straps and copper rivets.

The Finer

Details

VERTICAL STRAPS

Two perfectly positioned straps run parallel up the face of the hood body.

MADE IN USA

Like all our handmade products, these range hoods are 100% made to-order per client specifications.

1) Body Shapes

The Under Cabinet series of range hoods is available in the three body shapes shown below. All are designed to fit snugly underneath (and next to) kitchen cabinetry.

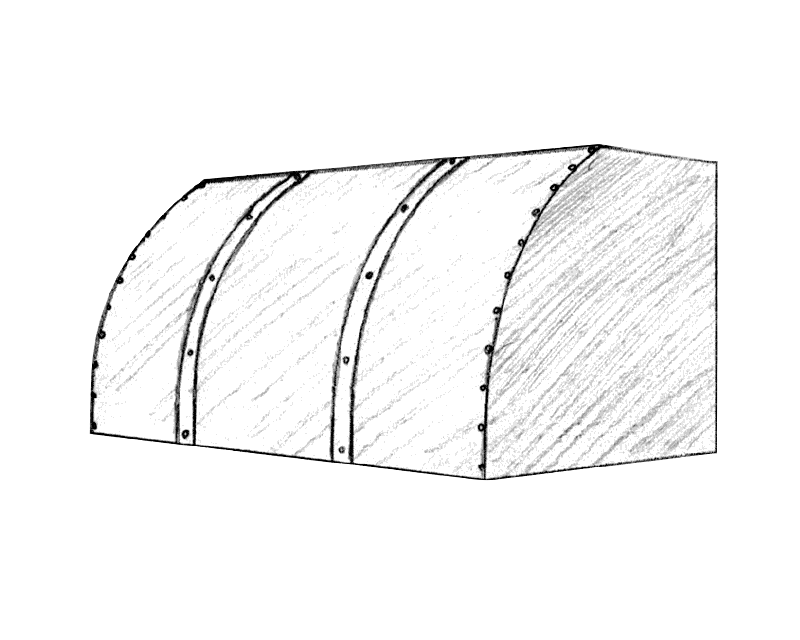

Barrel

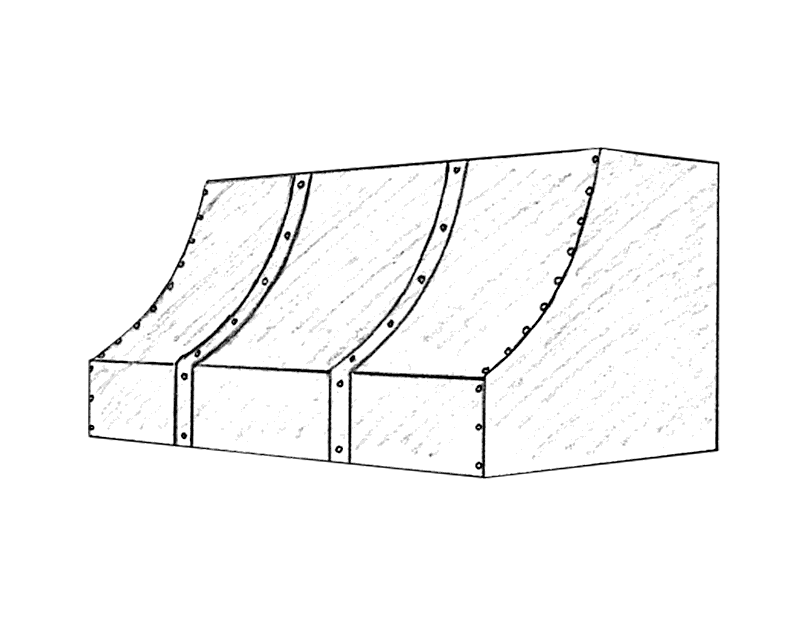

Slope

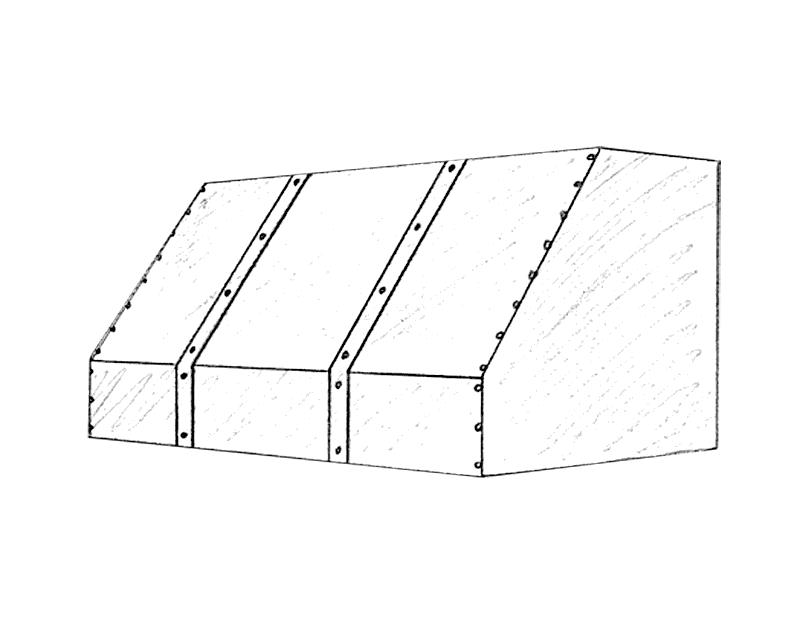

Straight

2) Metal Finish

Our range hoods come in a variety of metals/finishes, and rivets are available in eight metals/finishes. The hood body can be distressed, and a hammered or distressed finish can be added to the straps. Stainless steel and powder coated finishes cannot be distressed.


Natural Brass


Antique Brass


Mirrored Brass


Natural Copper


Antique Copper


Mirrored Copper


Natural Zinc


Antique Zinc


Natural Steel


Antique Steel


Blackened Steel


Powder Coated


Natural Stainless


Mirrored Stainless


Distressed (Body)


Distressed (Straps)


Hammered (Straps)

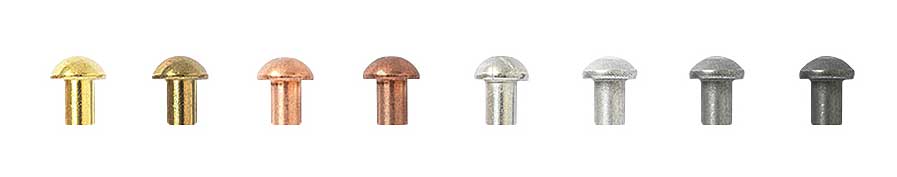

Left to right: brass, antique brass, copper, antique copper, stainless steel, steel, antique steel, blackened steel

5) Range Hood Features

What makes a Haube Range Hood unique

Quality Materials

Every Haube Range Hood is made with ultra high-quality materials sourced from reputable mills. We simply do not cut corners when it comes to acquiring the finest building metarials to construct our world-class range hoods. Choose from copper, zinc, steel, stainless steel, and brass.

Riveted Seams

Riveting is classic form of joinery in sheet metal, harnessing the innate strengths of the material itself. Riveting also provides the unique textural look along the seams. A truly riveted range hood (not decorative rivets like some use) should last a lifetime.

5) Ventilation

Every Haube Range Hood comes with a dependable blower unit backed by a full manufacturer's warranty.

30" Blower Assembly

30" hoods come with an American-made Air-Pro™ 021 power pack manufactured by VMI. It's perfectly sized for a 30" hood, but still offers 390 CFM of airflow, which is more than adequate for a 30" cooktop.

36"-54" Blower Assembly

36", 48" and 54" range hoods come with the Italian-made Inca Pro Plus™ by Faber. These blower units are available in 300-1200 CFM and feature variable speed fans and dishwasher safe grease baffles.

Let's Do This

Ready to configure your under cabinet range hood? Follow the link below. Once your design has been submitted, we'll respond with a rendering, order summary, and payment options.

Design Your Hood

Under Cabinet Series

Photo Gallery

Browse our allery of client-configured range hoods from our Under Cabinet series. We invite you to submit your own design using our range hood configurator and well respond with a 3D rendering of your hood.

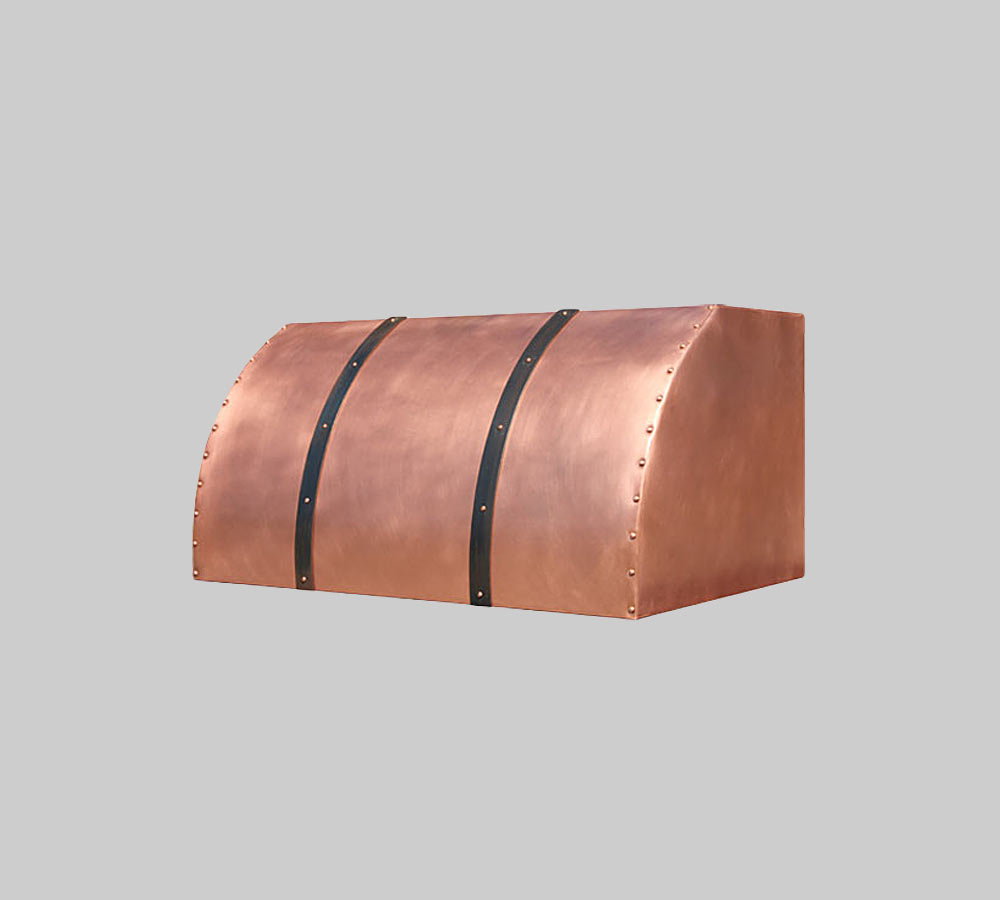

Custom Under Cabinet Range Hood (copper)
Under Cabinet Barrel
Copper + Steel
Custom Under Cabinet Range Hood (zinc)

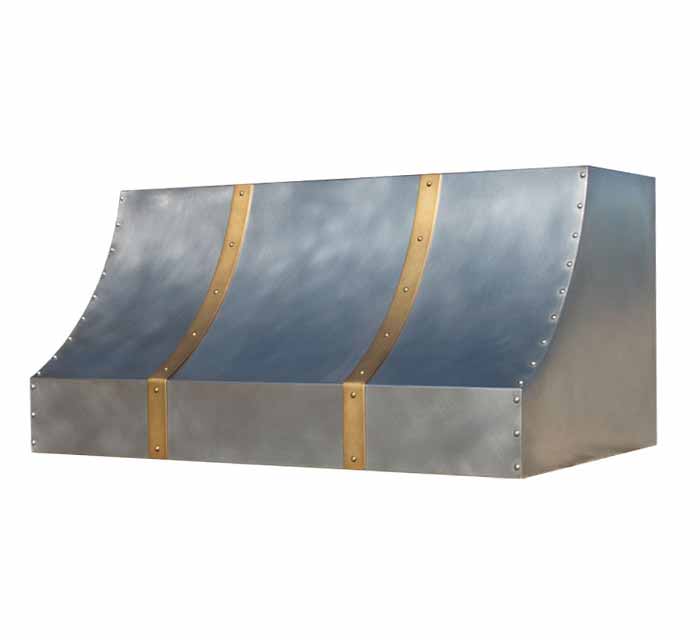

Under Cabinet Slope
Zinc

Range Hood

Terminology

Strapping

Strapping refers to the metal bar stock used to differentiate between our different range hood series. The strapping is held onto the main body using rivets.

Rivets

Rivets are the metal fasteners that attach the straps to the body and hold the hood together. Our rivets are fully functional, meaning your hood is of exceptional strength.

Hood Body

The hood body refers to the general shape of your range hood. Up to ten different body shapes are available depending on which of the four series you select.

Apron

The lower section of the hood that turns down just below the main body of the hood, providing a flat surface for the horizontal strapping to mount, if applicable.

Fan/Blower

The the functional part of your range hood that contains the fan system, controls, and lighting. Airflow is measured in CFM, or cubic feet per minute.

Baffles

Baffeling refers to professional style grease traps that capture solids mixed in with the kitchen exhaust. All 36-54" blower assemblies feature professional grease baffles.

Flue Extension

A flue extension is a decorative piece of metal that ads to the height of your range hood and is often used to carry the hood body all the way to the ceiling.

Corner Plates

Decorative metal angle plates that are riveted to the lower outside corners of our Under Cabinet series of range hoods.
